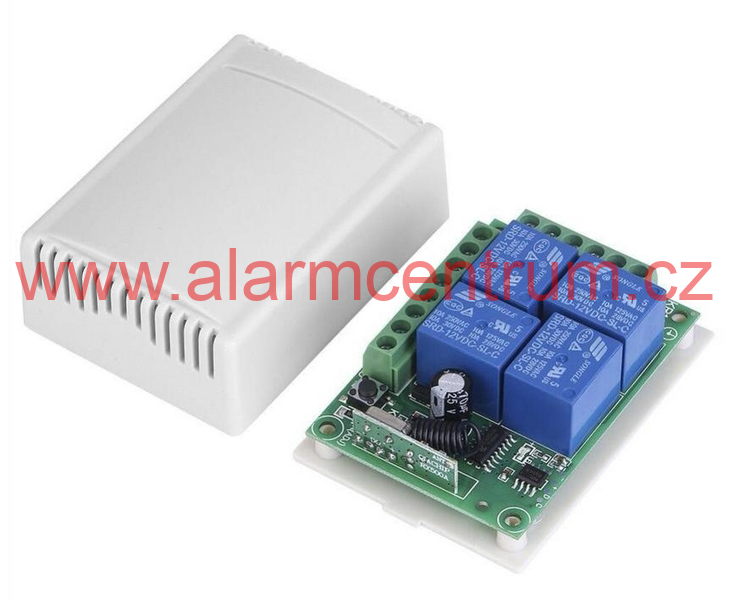

Bezdrátové dálkové ovládání - 4 kanály, přijímač + vysílač

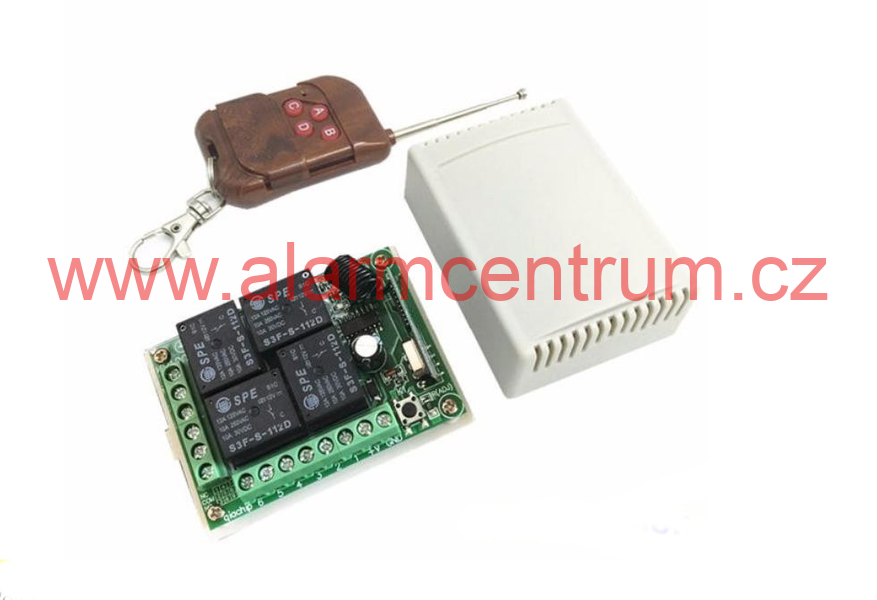

Bezdrátové dálkové ovládání - 4 kanály, přijímač + vysílač pro ovládání různých zařízení nebo spotřebičů s napájecím napětím do 230V a příkonem do 2000W. Přijímač má malé a kompaktní rozměry a jednoduché a intuitivní ovládání.
SPECIFICATION
1. Working Voltage:DC12V
2. Quiescent Current:5mA
3. Working Frequency:433Mhz
4. Receiving Sensitivity:-104dBm
5. Function option:Momentary/Toggle/Latched
6. Modulation Mode:ASK
7. Matching Mode: Intelligent Learning code
8. Output Mode:Dry contact /Voltage output
9. Shell:Yes
10. Working temperature : -30~+80
11. PCB dimension:68.2x48.2(mm)

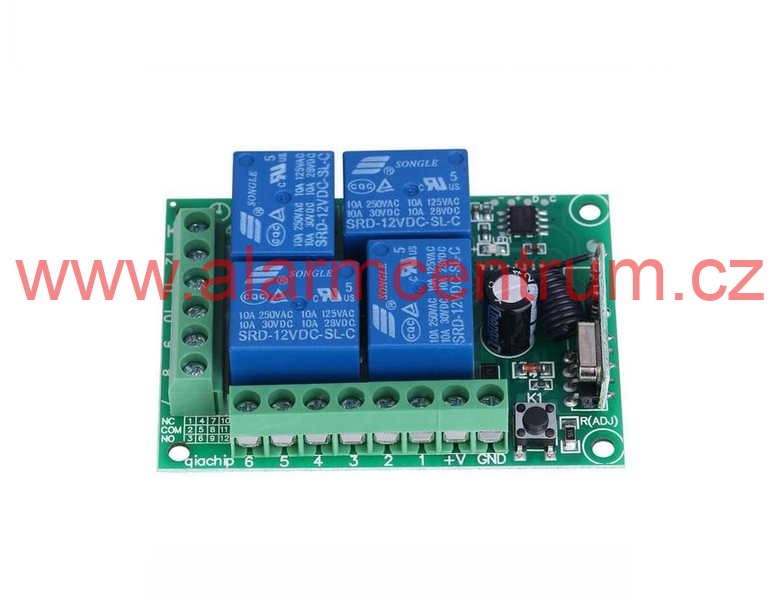

+V — Positive pole input
GND — Negative pole input
1 —KC1 Normal Closed of relay (NC)
2 —KC1 Common of relay (COM)
3 —KC1 Normal Open of relay (NO)
4 —KC3 Normal Closed of relay (NC)
5 —KC3 Common of relay (COM)
6 —KC3 Normal Open of relay (NO)
7 —KC2 Normal Closed of relay (NC)
8 —KC2 Common of relay (COM)
9 —KC2 Normal Open of relay (NO)
10 —KC4 Normal Closed of relay (NC)
11 —KC4 Common of relay (COM)
12 —KC4 Normal Open of relay (NO)
-Instructions:
About Working mode:
1.Momentary/Jog: Press and hold->on; Release->Off
Keep pressing one button , the corresponding channel is working /on;
Loosen your finger is stop/OFF .
(4 channel switch(receiver) need 4 button remote control (transmitter ))
2.Toggle/Self-Lock: Press->on; Press again->Off
Press one button for one time , the corresponding channel is working/on;
Press the same button again is stop/OFF .
(4 channel switch(receiver) need 4 button remote control (transmitter)).
3.Latched/Inter-Lock:Press->on; Press other button->Off
Press one button for one time, the corresponding channel is working/on;
Press another button is stop/OFF（At the same time, another corresponding channel works） .
( 4 channel switch( receiver) need 4 buttons remote control (transmitter).
The setting of working mode：
1.Momentary Mode:pressing one timethe learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting momentary mode successfully .
2.Toggle Mode:pressing two timesthe learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting toggle mode successfully .
3.Latched Mode:pressing three timesthe learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press first remote button ,follow on second remote button , signaling three times by remote’s LED indicator informs about setting latching mode successfully ( first button stands for on , second button stands for off ).
4.2CH momentary + 2CH Toggle:pressing four timesthe learning key button on the receiver board(Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .
5.2CH Momentary + 2CH Latched:pressing five timesthe learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .
6.2CH Toggle + 2CH Latched:pressing six timesthe learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .
7.2CH Latching + 2CH Latched:pressing seven timesthe learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote’s LED indicator informs about setting successfully .
8.Deleting existing remote controls data:pressing eight timesthe learning key button on the receiver board , the LED indicator on receiver board will flash for eight times , the existing remote controls are deleted successfully .
